Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger
SKU:  SC-620
Other Similar Items

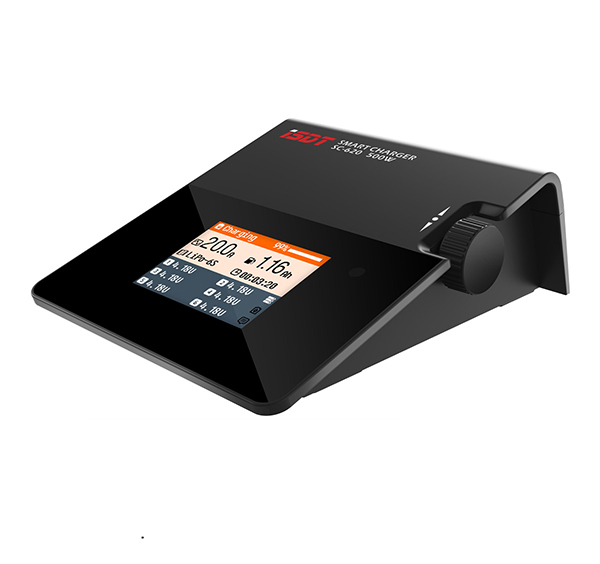

iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger
Customers rating.
Add To Wish List
Added:2016/07/15
Updated:2017/12/15
Follow Us on:


  Tags: iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger

Features:
2.4" IPS Display
262K colors Hi-brightness monitor,enhance luminance and contrast ratio,which could save power 15%
Equip with RAM power saving refreshed and CABC backlight control,
backlight power saved 30%
Up to 178°visible angle,cuts reflections on screen amd feel comfortable

scOs developed just for smart battery charging
Colorful and bright UI design,optimized display information,makes setup &working status clearer to read
Quick & simple function menu design,reduces operating steps up to 80%
Supporting online update with PC,optimizing operation system and improving user experience constantly

ARM 32bit Hi-speed CPU
ARM Cortex-M4 32bit ultra fast calculations
Data processing capacity enhanced by 20 times
Powered by the ARM Cortex-M4, the SC-620 offers amazing speed with its 32-bit operation.
This provides a 20-fold increase in data processing capacity when compared to traditional chargers.

Hi-converting efficiency,extreme power-volume ratio
High speed & efficiency synchronous power supply and high Purity aluminium alloy cooling fins is used to ensure excellent transformation
and  reductions in heat,along with a high-speed mini-fan to provide active cooling with a 50% volume reduction and 300% power increase.

One-key shuttling
Simple and natural shuttling movements have created an elegant replacement for clumsy point-and-touch finger operations.
A single key is used for every function, providing a crisp and precise experience.

Expedite USB Interface
Phones out of power? Don't worry, connect to USB,which will provide 5V/2A for phone charge
No need to be troubled with ME without electricity

Internationalization ,Multilanguage
Supporting multiple languages to make sure use it without difficulty.Truly local and barrier-free usage

Outstanding Design

The thinnest part is only 4MM,meanwhile the output power is increased to 500W
Use EC5 terminal for input & output,connect battery more safely
Hi-speed fan & delicate air duct,enable it to shrink volume remarkably while guarantee adequate heat-sinking
Specifications:

THUNDER 0620AC AC/DC Dual Input 300W/ 20A Compact Multi-function Charger


Input Voltage: DC 9-30V
Output voltage: 0-30V
Charging current: 0.1 - 20.0A
Discharging current: 0.1-3A
Charging power: 500W
Discharging power: 15W, max
Balanced cells: 2-6S
USB output: 2.1A/ 5V
Battery types: LiPo/LiFe/Lilon/LiHv(1-6S)
                            NIMH/CD(1-18S)
                            PB(1-12s)

Display screen: 2.4",  320x240 IPS LCD
Dimension: 130x115x52mm
Weight:  289g
Includes/Requires:
Includes:
1 x charger
1 x accessory bag
1 x manual
