   Multi-rotors Electronic Speed Controller (ESC) J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs
   Multi-rotors Miscellaneous
SKU:  J-K100A
J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs
Customers rating.
Add To Wish List
Bookmark and Share
Added:2013/09/05
Updated:2013/10/12
Follow Us on:

J81009070950


PRICE(USD):
    $4.46   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: multi-rotor controller

Features:

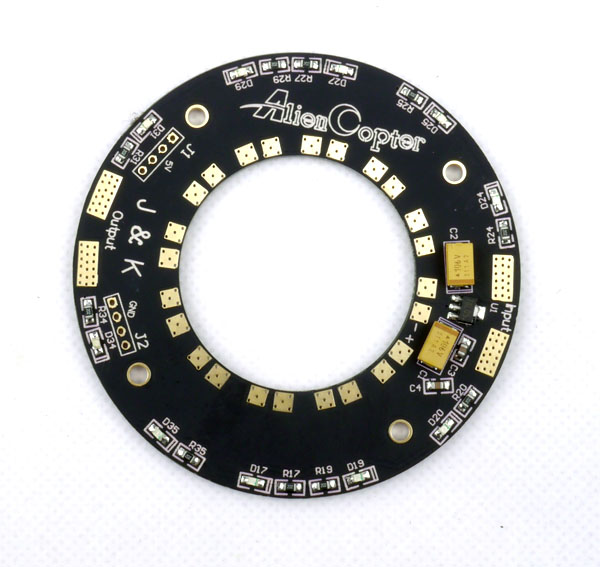

This is a power distribution hub specially designed for multi-rotor speed controller connection.

It makes the wiring of your multi-rotor system neater, nicer, securer.

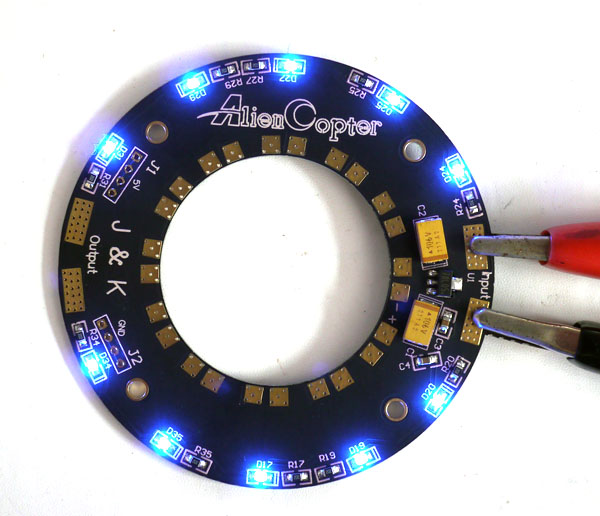

- With LED lights.

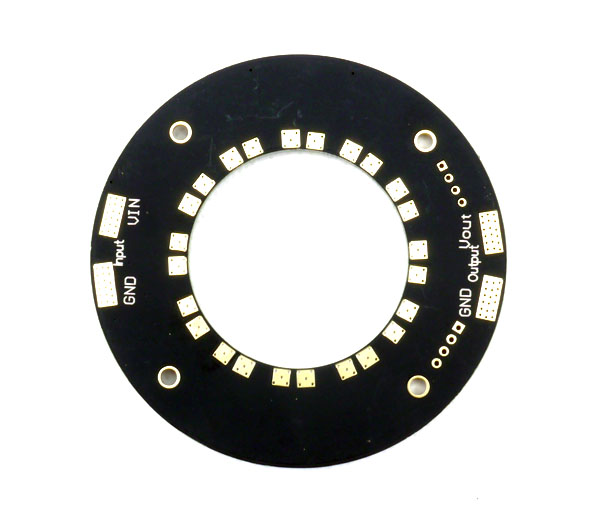

- 2 sets welding points for main power supply

Suit for multicopters up to 800mm in rotor spacing and working current no higher than 100A.

Installation method:
1. Weld the power input wires of ESCs to the hub, suggested inner circle for "+", and outter circle for "-".
2. Isolate the hub with tape or shrinking tube, or use double side tape to fix it to the main frame of your multi-rotor aircraft.
Specifications:

J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs


Max ESC number: 12
Outer diameter: 77mm
Inner diameter: 40mm
Weight: 13g
Max voltage supported: 6S  (the voltage regulating chips for LEDs will be burned when exceeding 6S for power input)

Includes/Requires:
Includes:
1 x wiring hub

Customer Reviews:
Average Customer Review: 5 stars   2 customer review(s).   [Write a review/question]

Pisti Fesus
Grade:
It is depend on your motor,for example a SunnySky V4010 450KV will require 22 amps on 100% throttle but as you do not run the rig on 100% throttle all the time is fine. Even if it it just 88 amps on a quad. 45A ESC is a overkill as the motor does not require that much of power. You need to start to see the motor specification first and see what is the Amps it is require. That is the Start point.
December 01 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]

f****h3
Grade:
Im going to used 45amp esc x 4 and with 400kv motor can this pdb support this configurations
Tq
August 05 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
