Features:
1. Tiny F3_EVO_Brush revision is out of the F3 EVO SP RACING is based on a SP RACING F3 EVO firmware 32 brush flight control.
2.The flight control support 1S (4.2V)
3. Independent design of the circuit structure, comes with the Voltage control technology, 1S lipo battery input, the UART1/2/3 output 5V, DSM port output 3.3V
4.Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight
5. With a large current NMOS transistors, operating current of up to 10A or more. Each Brushed motor is equipped with freewheeling diodes.
6.Support for PPM, SBUS, DSM/DSM2/DSMX receiver input signal.
7.In support of the world almost all hollow cup motor, including 1020 coreless motor.

Tiny SP Racing F3 EVO Brush Flight Control 32-bit  (1S Lipo)

Dimension: 23mmx19.5mmx5mm
Thickness: 1.2mm
Weight: 2g

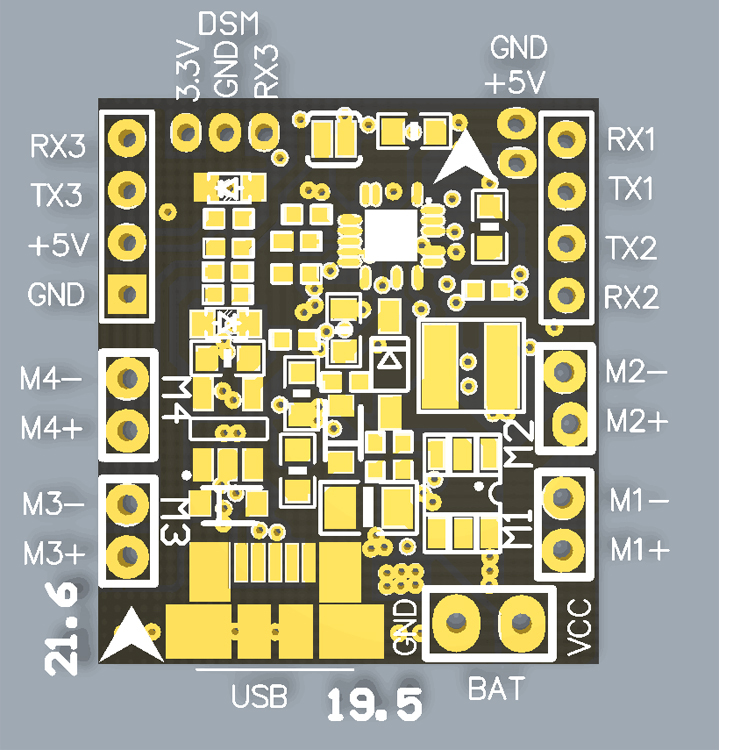

Receiver setting (receiver NOT included):
1、DSM receiver solders to3.3V, GND, RX3  of DSM port , and set to UART3 in CF software.

2、PPM and SBUS receivers solder to GND,+5V,RX2 of UART2 port, and set to UART2 in CF software for SBUS signal.

Includes:
1x  flight controller  (EVO brush version)
