Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Radio Sets RF Module / Receivers & Accy AC800 0.8G Sbus Telemetry Receiver for FrSky X9D X12S X9E Transmitter
   Radios Receivers & Accessories 7 - 9 Ch. Receivers
SKU:  AC-800

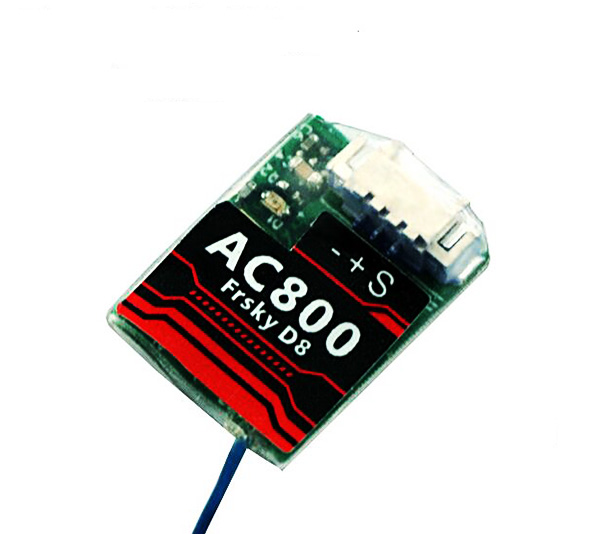

AC800 0.8G Sbus Telemetry Receiver for FrSky X9D X12S X9E Transmitter
Customers rating.
Add To Wish List
Added:2016/09/20
Updated:2017/06/21
Follow Us on:


  Tags: FrSky D8 AC800 0.8G Sbus Telemetry Receiver for FrSky X9D X12S X9E Transmitter

Features:
AC800 receiver, ultra-light, ultra-small, mini size.

For racing multicopter and compatible with CC3D F3 NAZE32 flight controls.

The receiver uses 32-bit RISC processor.

Adopt FHSSS technology, support D8R protocol.

Support SBUS and CPPM outputs.

Under D8R mode, compatible with FRSKY transmitters X9D X9E X12S etc.


SBUS, CPPM mode code:
1. convert SBUS mode: remote off, power on the receiver, approximately 6 seconds after the receiver speed blinking, into the receiver of the status code, the remote control is turned on and started on the code, the code after a successful regular receiver LED bright.
2. convert CPPM mode: remote off, power on the receiver, approximately 6 seconds after the receiver speed blinking, into the receiver of the code state, wait 30 seconds, the remote control is turned on and starts the code, the code successfully after the receiver LED blinks every second.


Product use:
1. Remote Control Power.
2. The receiver power LED lit when you can fly up.
3. LED's instructions:
LED blinks quickly, enter the code represents state
LED is off, no signal.
LED lit, and a signal indicative of the normal work SBUS mode.
LED lit, flashing a high speed for about 10 seconds, a signal indicative of the normal mode and operates at CPPM
SBUS, CPPM switching through the code to set the length of time.
Specifications:

AC800 Sbus Telemetry Receiver for FrSky X9D X12S X9E Transmitter

SPECS:

Power Requirement: 3.7-5.5V
Working frequency: 2.400Ghz-2.4800Ghz
Protocol: FRsky D8 (FHSS technology)
Range: >300 meters
Channel #: 8ch
Dimension: L*W*H=17mm*13mm*5mm
Weight: 0.9g

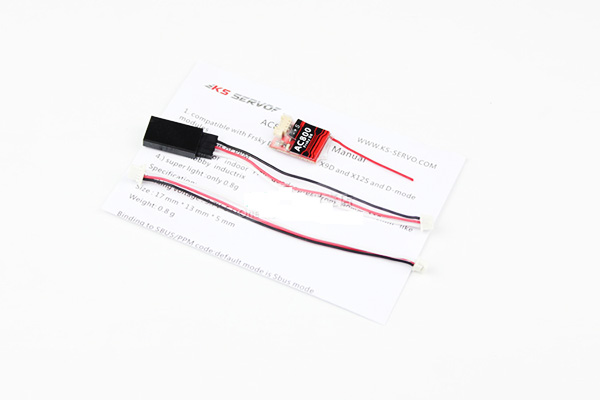

Includes/Requires:
Includes:
1 x receiver
2 x cables
